VW 1500N 1964
Key to components below
|

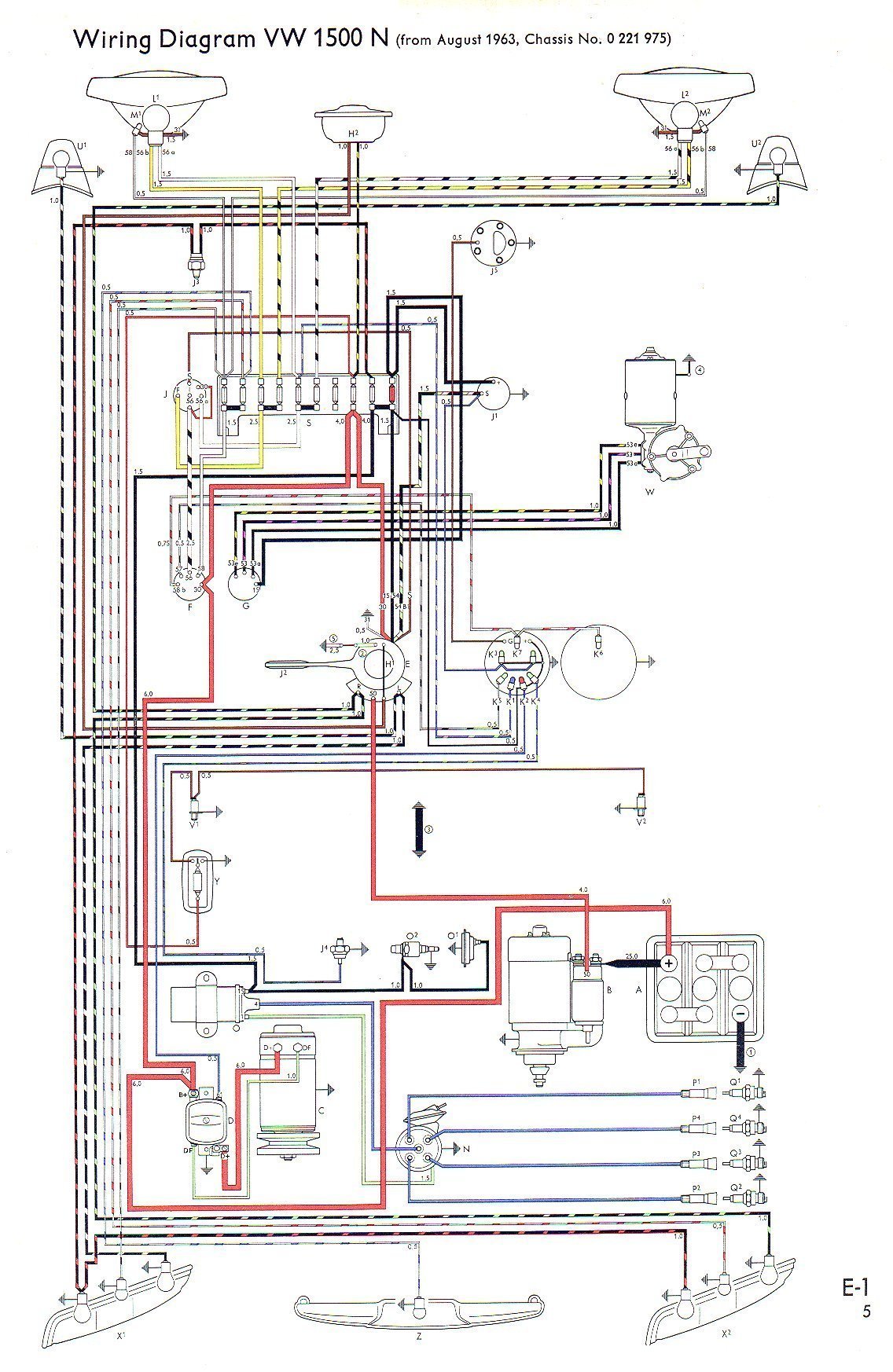

1500N Wiring 1964 model
| A - Battery B - Starting Motor C - Generator D - Voltage Regulator E - Turn Indicator Switch with Steering Lock F - Light Switch G - Windshield Wiper Switch H1 - Horn Lever H2 - Horn J - Dipper Relay J1- Flasher Relay J2 - Dipper Switch J3 - Stop Light Switch J4 - Oil Pressure Switch J5 - Fuel Gauge Sender Unit K1- High Beam Warning Light K2 - Generator Control Light K3 - Turn Indicator Control Lights K4 - Oil Pressure Warning Light K5 - Parking Light Control Light K6 - Speedometer Light K7 - Fuel Gauge Light L1 - Bi-filament Bulb for Headlight, left L1 - Bi-filament Bulb for Headlight. right M1 - Front Parking Light, left M2 - Front Parking Light, right N - Ignition Distributor 0 - Ignition Coil 01 - Automatic Choke 02 - Electro-magnetic Pilot Jet |
P1 - Spark
Plug Connector for Cylinder 1 P2 - Spark Plug Connector for Cylinder 2 P3 - Spark Plug Connector for Cylinder 3 P4 - Spark Plug Connector for Cylinder 4 Q1 - Spark Plug for Cylinder 1 Q2 - Spark Plug for Cylinder 2 Q3 - Spark Plug for Cylinder 3 Q4 - Spark Plug for Cylinder 4 S - Fuse Box (ten fuses) U1 - Front Turn Indicator Light, left U2 - Front Turn Indicator Light, right V1 - Door Contact Switch, left V2 - Door Contact Switch, right W - Windshield Wiper Motor Y1 - Tail Light, left X2 - Tail Light. right Y - Interior Light Z - License Plate Light Ground Straps |
