VW 1600TL 1966
Key to components below
|

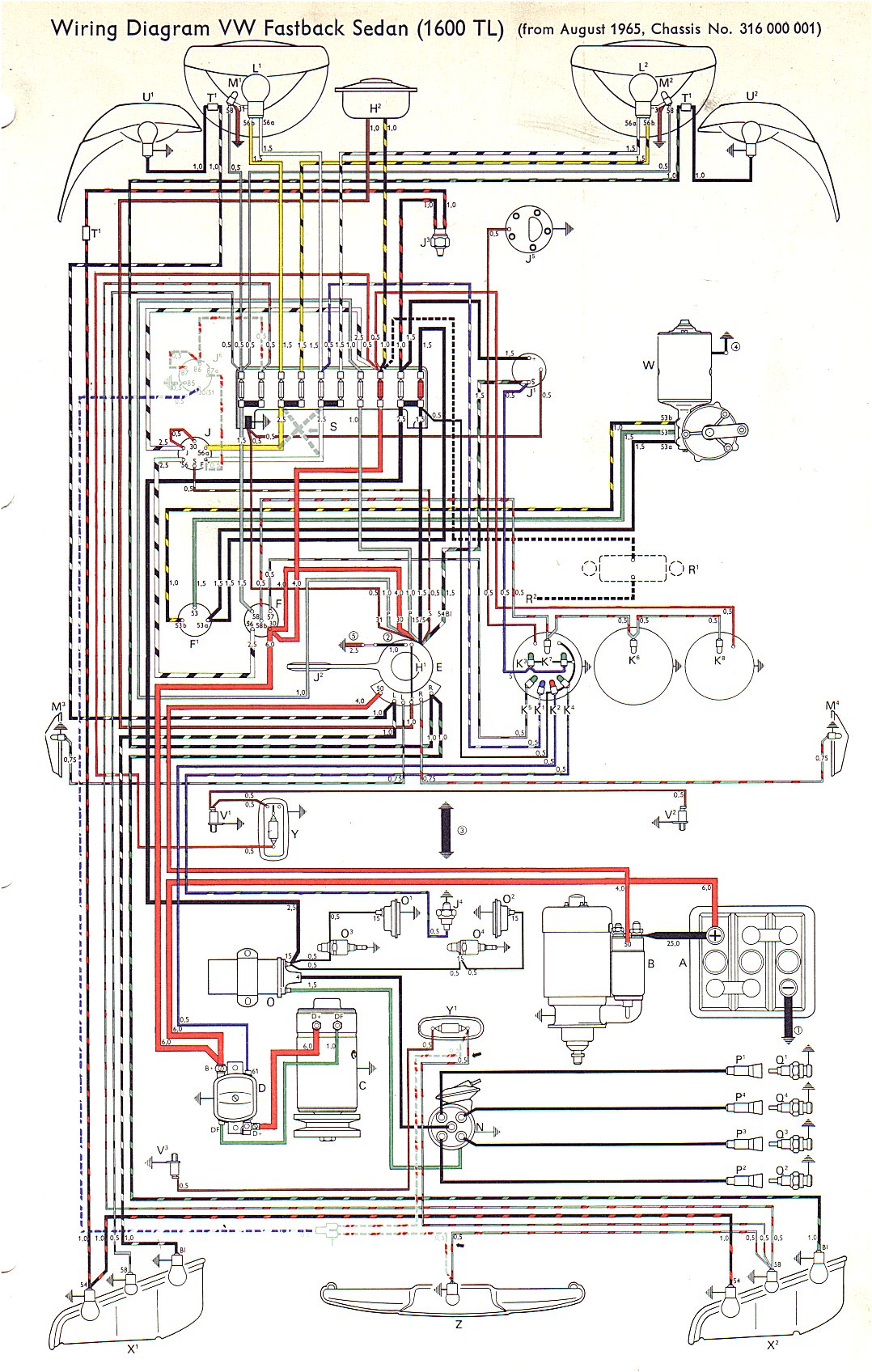

1600TL Wiring 1966 model
| A - Battery B - Starter C - Generator D - Regulator E - Turn signal switch with steering/ignition lock F - Lighting switch F1 - Windshield wiper switch H1 - Horn lever H2 - Horn J - Headlamp flasher relay J1 - Flasher relay J2 - Headlamp flasher button J3 - Brake light switch J4 - Oil pressure switch J5 - Fuel gauge sender unit K1 - High beam warning light K2 - Generator warning light K3 - Turn signal warning light K4 - Oil pressure warning light K5 - Parking light warning light K6 - Speedometer light K7 - Fuel gauge light K8 - Clock light L1 - Twin filament bulb for headlamp, left L2 - Twin filament bulb for headlamp right M1 - Parking light left M2 - Parking light, right M3 - Parking lamp left side M4 - Parking lamp right side N - Distributor O - Ignition coil O1 - Automatic choke left O2 - Automatic choke, right O3 - Electro-magnetic pilot jet left O4 - Electro-magnetic pilot jet, right |
P1 - Spark
plug connector No. 1 cylinder P2 - Spark plug connector No. 2 cylinder P3 - Spark plug connector No. 3 cylinder P4 - Spark plug connector No. 4 cylinder Q1 - Spark plug for No. 1 cylinder Q2 - Spark plug for No. 2 cylinder Q3 - Spark plug for No. 3 cylinder Q4 - Spark plug for No. 4 cylinder R1 - Radio R2 - Aerial connection S - Fuse box - 10 fuses T1 - Cable connector, single T2 - Cable connector double U1 - Turn signal, front left U2 - Turn signal front right V1 - Door switch, left V2 - Door switch right V3 - Luggage compartment light switch W - Windshield wiper motor X1 - Tail light, left X2 - Tail light, right Y - Interior light Y1 - Luggage compartment light Z - License plate light Ground straps and connections 1 - Battery to frame 2 - Horn lever to steering coupling 3 - Transmission to frame ground connection 4 - Windshield wiper motor to body 5 - Front axle to frame Black dotted lines = Service installation 1,5; 0,5 etc. Cable cross sections mm2 Grey dotted lines are for Austrian vehicles only |
