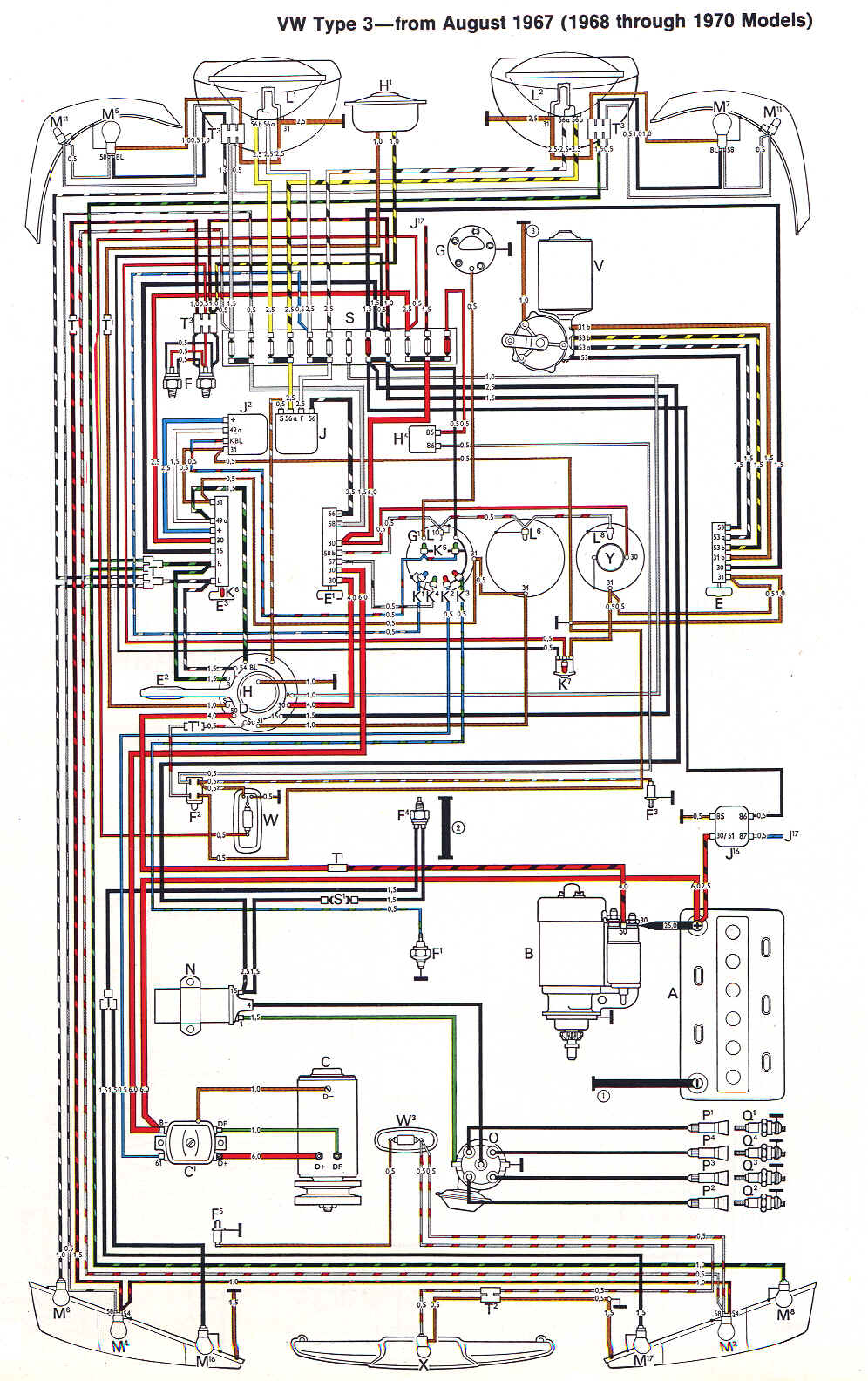

| A — Battery B — Starter C — Generator C1 — Regulator D — Ignition I starter switch E — Windshield wiper switch E1 — Light switch E2 — Turn signal and head light dimmer switch E3 — Emergency flasher switch F — Brake light switch F1 — Oil pressure switch F2 — Door contact switch, left, with contact for buzzer F3 — Door contact switch, right F4 — Back-up light switch F5 — Luggage compartment light switch G — Fuel gauge sending unit G1 — Fuel gauge H - Horn button H1 — Horn H5 — Ignition key warning buzzer J — Dimmer relay J2— Emergency flasher relay J16 — Power supply relay for fuel injection system J17 — To fuel pump relay K1 — High beam warning light K2 — Generator charging warning light K3 — Oil pressure warning light K4 — Parking light warning light K5 — Turn signal warning lights K6 — Hazard warning light warning light K7 — Dual circuit brake system warning light L1 — Sealed beam unit, left L2 — Sealed beam unit, right L6 — Speedometer light L8 — Clock light L10 — Instrument panel light |
M2 — Tail and brake light,, right M4 — Tail and brake light, left M5 — Turn signal and parking light, front, left M6 — Turn signal, rear, left M7 — Turn signal and parking light, front, right M8 — Turn signal, rear, right M11— Side marker light, front M16— Back-up light, left M17— Back-up light, right N — Ignition coil O — Distributor P1 — Spark plug connector, No. 1 cylinder P2 — Spark plug connector, No. 2 cylinder P3 — Spark plug connector, No. 3 cylinder P4 — Spark plug connector, No. 4 cylinder Q1 — Spark plug, No. 1 cylinder Q2 — Spark plug, No. 2 cylinder Q3 — Spark plug, No. 3 cylinder Q4 — Spark plug, No. 4 cylinder S — Fuse box S1 — Back-up light in-line fuse T — Cable adapter T1 — Cable connector, single T2 — Cable connector, double T3 — Cable connector, triple V — Windshield wiper motor W — Interior light W3— Luggage compartment light X — License plate light
1 — Battery to frame ground strap |
